Transform Gizmo Example

use eframe:: { egui, NativeOptions };
use transform_gizmo_egui:: math:: { DQuat, Transform };
use transform_gizmo_egui:: {
  math:: { DMat4, DVec3 },
    *,
};

struct ExampleApp {
  gizmo: Gizmo,

    gizmo_modes: EnumSet < GizmoMode >,
      gizmo_orientation: GizmoOrientation,

        scale: DVec3,
          rotation: DQuat,
            translation: DVec3,
}

impl ExampleApp {
    fn new () -> Self {
        Self {
      gizmo: Gizmo::default (),
        gizmo_modes: GizmoMode:: all(),
          gizmo_orientation: GizmoOrientation:: Local,
            scale: DVec3:: ONE,
              rotation: DQuat:: IDENTITY,
                translation: DVec3:: ZERO,
        }
  }

    fn draw_gizmo(& mut self, ui: & mut egui:: Ui) {
    // The whole clipping area of the UI is used as viewport
    let viewport = ui.clip_rect();

    let projection_matrix = DMat4:: perspective_infinite_reverse_lh(
      std:: f64:: consts:: PI / 4.0,
        (viewport.width() / viewport.height()).into(),
        0.1,
        );

    // Fixed camera position
    let view_matrix = DMat4:: look_at_lh(DVec3:: splat(5.0), DVec3:: ZERO, DVec3::Y);

    // Ctrl toggles snapping
    let snapping = ui.input(| input | input.modifiers.ctrl);

    self.gizmo.update_config(GizmoConfig {
      view_matrix: view_matrix.into(),
      projection_matrix: projection_matrix.into(),
      viewport,
      modes: self.gizmo_modes,
      orientation: self.gizmo_orientation,
      snapping,
            ..Default:: default()
    });

    let mut transform =
      Transform:: from_scale_rotation_translation(self.scale, self.rotation, self.translation);

    if let Some((result, new_transforms)) = self.gizmo.interact(ui, & [transform]) {
      for (new_transform, transform) in
        new_transforms.iter().zip(std:: iter:: once(& mut transform))
      {
                * transform = * new_transform;
      }

      self.scale = transform.scale.into();
      self.rotation = transform.rotation.into();
      self.translation = transform.translation.into();

      let text = match result {
        GizmoResult:: Rotation {
          axis,
          delta: _,
          total,
          is_view_axis: _,
        } => {
        format!(
          "Rotation axis: ({:.2}, {:.2}, {:.2}), Angle: {:.2} deg",
          axis.x,
          axis.y,
          axis.z,
          total.to_degrees()
        )
      }
      GizmoResult::Translation { delta: _, total } => {
        format!(
          "Translation: ({:.2}, {:.2}, {:.2})",
          total.x, total.y, total.z,
        )
      }
      GizmoResult::Scale { total } => {
        format!("Scale: ({:.2}, {:.2}, {:.2})", total.x, total.y, total.z,)
      }
      GizmoResult::Arcball { delta: _, total } => {
        let(axis, angle) = DQuat:: from(total).to_axis_angle();
        format!(
          "Rotation axis: ({:.2}, {:.2}, {:.2}), Angle: {:.2} deg",
          axis.x,
          axis.y,
          axis.z,
          angle.to_degrees()
        )
      }
    };

    ui.label(text);
  }
}

    fn draw_options(& mut self, ui: & mut egui:: Ui) {
  ui.heading("Options");
  ui.separator();

  egui:: Grid:: new ("options_grid")
    .num_columns(2)
    .show(ui, | ui | {
      ui.label("Modes");
      egui:: ComboBox:: from_id_source("mode_cb")
                    .selected_text(format!("{}", self.gizmo_modes.len()))
        .show_ui(ui, | ui | {
          for mode in GizmoMode:: all() {
            let mut mode_selected = self.gizmo_modes.contains(mode);
            ui.toggle_value(& mut mode_selected, format!("{:?}", mode));
            if mode_selected {
              self.gizmo_modes.insert(mode);
            } else {
              self.gizmo_modes.remove(mode);
            }
          }
        });
      ui.end_row();

      ui.label("Orientation");
      egui:: ComboBox:: from_id_source("orientation_cb")
                    .selected_text(format!("{:?}", self.gizmo_orientation))
        .show_ui(ui, | ui | {
          for orientation in [GizmoOrientation:: Global, GizmoOrientation:: Local] {
          ui.selectable_value(
                                & mut self.gizmo_orientation,
            orientation,
            format!("{:?}", orientation),
          );
        }
                    });
  ui.end_row();
});
    }
}

impl eframe::App for ExampleApp {
  fn update(&mut self, ctx: & egui:: Context, _: & mut eframe:: Frame) {
    egui:: SidePanel:: left("options_panel").show(ctx, | ui | {
      self.draw_options(ui);
    });

    egui:: CentralPanel::default().show(ctx, | ui | {
      self.draw_gizmo(ui);
    });

  ctx.request_repaint();
}
}

fn main() -> eframe:: Result < () > {
  eframe:: run_native(
        "transform_gizmo_egui example",
    NativeOptions::default(),
  Box:: new (| _ | Box:: new (ExampleApp:: new ())),
    )
}

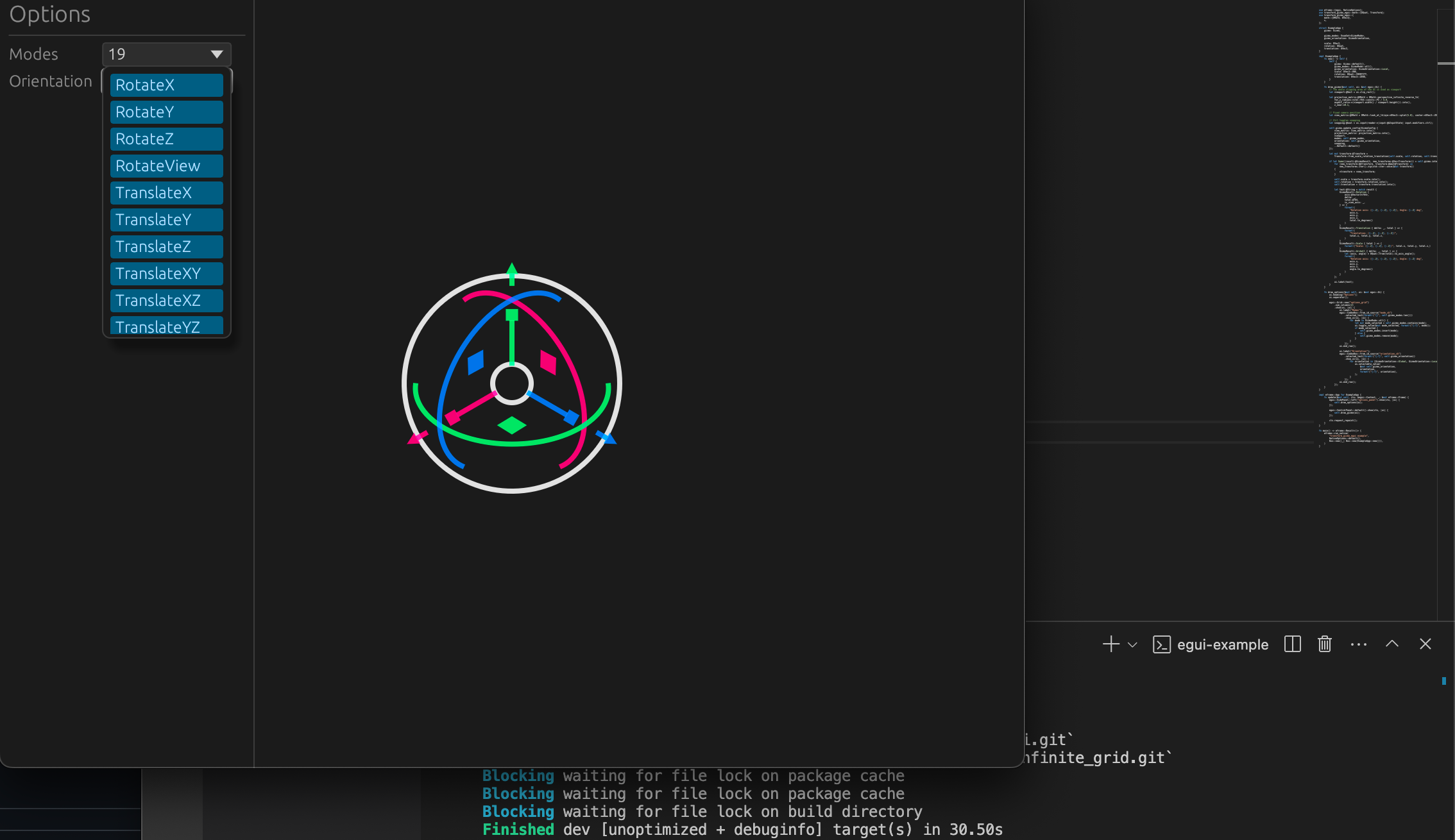

效果展示
